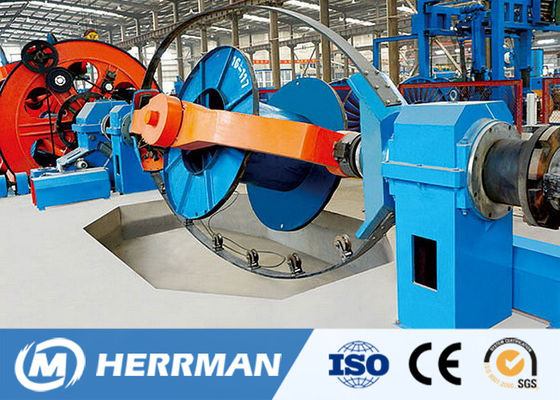

Planetary Type Lay Up Machine SIEMENS S7-1500 PLC Control 40r / Min Rotating Speed

Planetary Type Lay Up Machine SIEMENS S7-1500 PLC Control 40r / Min Rotating Speed
Planetary Type Lay Up Machine SIEMENS S7-1500 PLC Control 40r / Min Rotating Speed

Large Image :  Planetary Type Lay Up Machine SIEMENS S7-1500 PLC Control 40r / Min Rotating Speed Get Best Price

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, ISO, SGS, CQC
Model Number: 1000, 1250, 1600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: Plastic Film Winding
Delivery Time: 4 Months
Payment Terms: L/C, D/A, OA, D/P, T/T
Supply Ability: 25 Sets Per Year
Detailed Product Description
Rotating Speed: 40r/min Bobbin Size: 1000, 1250, 1600mm
Single Wire Diameter: 10~35mm Motor Power: 30KW
Usage: Laying Up Cable Final Product: Electrical Cable
High Light:

cable laying machine

,

drum twister machine

Cable Manufacturing Machine Lay Up Machine Planetary Lay Up Machine



1. Usage



The machine can be used to manufacture large size plastic cable or PEX cable etc electrical cable, section of cable can be round or setor.



2. Main Characteristic



- The machine is adopting SIEMENS S7-1500 PLC to command and coordinate electric work. The electric control system is advance in technology, easy in operation, and reliable in running.

- The machine is provided with back-twist, pre-twist, bobbin is clamped and released by electrical.



3. Structure



630/1+6, 1000/1+6, 1000/1+3, 1000/1+1+3, 1250/1+3, 1250/1+1+3, 1250/1+4, 1250/1+6, 1600/1+3, 1600/1+1+3 etc



4. Main Technical Data

Type JC-1600/1+1+3 JC-1250/1+1+3 JC-1000/1+6 JC-1250/1+4
Diameter of single wire 10~35mm 10~25mm 10~20mm 10~25mm
Max diameter for cabling 100mm 75mm 63mm 75mm
Max Speed 40r/min 50r/min 60r/min 50r/min
Stranding pitch 415~7100mm 151~2652mm 110~1910mm 151~2652mm
Taping speed 160~357r/min 125~278r/min 125~278r/min 125~278r/min
Taping Pitch 13.7~221mm 12.4~203mm 12.4~203mm 12.4~203mm
Line speed 4.9~35.5m/min 3.5~25.4m/min 3.5~25.4m/min 3.5~25.4m/min
Main motor 55KW 37KW 30KW 45KW
