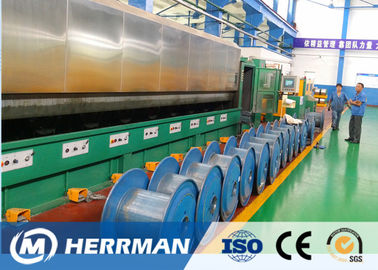

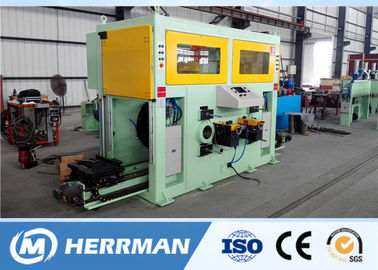

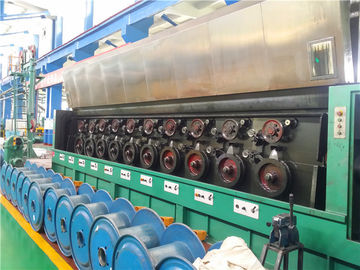

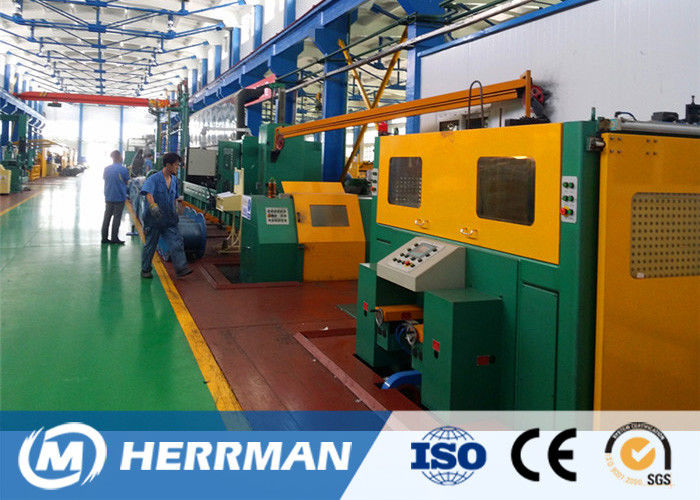

Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire

China Fast Speed  Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire supplier
Fast Speed  Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire supplier Fast Speed  Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire supplier Fast Speed  Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire supplier Fast Speed  Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire supplier

Large Image :  Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, GS, SGS, TUV, ISO
Model Number: 450/9, 450/11, 450/13

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: EXPORT PACKING
Delivery Time: 140 DAYS
Payment Terms: L/C, D/A, D/P, T/T or By Negotiation
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: High Speed Rod Breakdown Wire Drawing Machine For Copper And Aluminum Inlet Diameter: 8mm For Copper, 9.5mm For Aluminum Or Aluminum Alloy
Outlet Diameter: 1.2mm - 4.5mm For Copper, 1.8mm - 5.0mm For Aluminum Or Aluminum Alloy Driven Method: Servo Motor Without Gear And Belt
Line Speed: 1800m/min Shapes: Round Or Shaped Wire


High Speed Rod Breakdown Wire Drawing Machine For Copper And Aluminum

Application

Copper and Aluminum Rod Breakdown Machine is used for drawing Φ9.5 Aluminum or Aluminum alloy rod to 1.8-5.0mm wires or Φ8 Copper rod to 1.2-4.5mm wires .


Main advantage

Multi motor technology for energy saving and better wire quality

User-friendly design and full access to the work area for easy string-up

High performance gearboxes

Quick change dies

Low preventive maintenance

Wire path suitable for shaped wire



Main Technical Data:

Copper Rod Breakdown Machine with separate motor control


Type

Inlet Dia
(mm)

Outlet Dia
(mm)

Max Speed (m/s) Max Drawing Path Capstan Dia(mm)
450/9 ø8 Ø2.0- ø4.2 22 9 Ø450
450/11 ø8 Ø1.6- ø4.2 30 11 Ø450
450/13 ø8 Ø1.2- ø4.5 30 13 Ø450


Aluminium Rod Breakdown Machine with separate motor control


Type

Inlet Dia
(mm)

Outlet Dia
(mm)

Max Speed (m/s) Max Drawing Path Capstan Dia(mm)
450/9 Ø9.5 Ø2.5- ø4.7 22 9 Ø450
450/11 ø9.5 Ø2.0- ø4.7 30 11 Ø450
450/13 ø9.5 Ø1.8- ø5.0 30 13 Ø450



Machine Drawing

Fast Speed  Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
