| Product Name: | Rubber Continuous Vulcanizing Cable Extrusion Line | Application: | For LV, MV, HV And EHV Cables |
|---|---|---|---|
| Function: | Insulation And Sheathing | Rubber Material: | Natural Rubber, SBR, CR, NBR, EPR, CPE, CSPE,EPDM,NR,EVA,CM,SC RUBBER,SILICONE RUBBER |
| Dia. Before Extruding: | 5mm - 90mm | Dia. After Extruding: | 30mm - 110mm |
| High Light: | cable extruder machine,rubber extrusion line,Continuous Vulcanizing Cable Extrusion Machine |
||

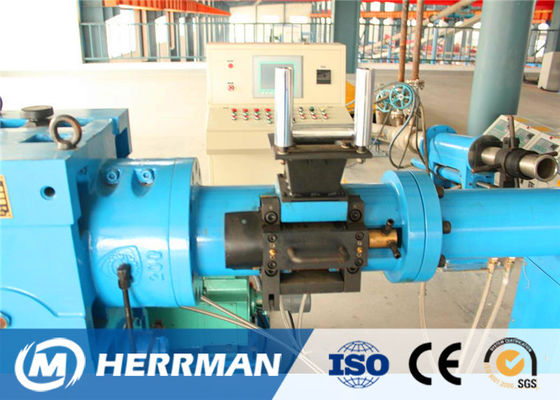

Automatic Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Main Feature
This line is a special machine for the purpose of rubber wire and cable’s insulating, sheathing as well as for the continuous vulcanizing. The rubber material include natural rubber, SBR, CR, NBR, EPR, CPE, CSP and so on. The cable can be used in mining, marine etc.
The main emphasis of our product range is placed on the production of cores and sheathing, rubber insulated cores and conductors, as well as CV lines for medium and high voltage cables.
Main Technical Specification
| ITEM | 65/14 | 90/16 | 120/16 | 150/16 | 60+65 |
65+90 |
90+120 |
65+120+90 |
90+150+120 |
| Dia. before extruding (mm) | Φ1.5~Φ4 | Φ5~Φ20 | Φ12~Φ50 | Φ20~Φ8 | Φ1.5~Φ10 | Φ5~Φ30 | Φ15~Φ80 | Φ15~Φ80 | Φ20~Φ90 |
| Dia. after extruding (mm) | Φ15 | Φ30 | Φ60 | Φ90 | Φ20 | Φ40 | Φ90 | Φ90 | Φ110 |
| Max.extruding speed (m/min) | 40 | 30 | 30 | 20 | 40 | 30 | 20 | 20 | 20 |
| Max. output (kg/h) | 70 | 150 | 380 | 550 | 60+70 | 70+150 | 150+380 | 70+150+380 | 150+550+380 |
| Screw material | 38CrMnALA | ||||||||
| Screw type | Dual-screw thread, BM type | ||||||||
| Heating area | 5 | 5 | 6 | 6 | 5+5 | 5+5 | 5+6 | 5+5+6 | 5+6+6 |
| Main motor (DC) | 27 | 55 | 110 | 132 | 27+27 | 27+55 | 55+110 | 27+110+55 | 55+132+110 |
| length of vulcanizing pipe (m) | 60 | 84 | 84 | 84 | 60 | 84 | 84 | 84 | 84 |
| P/O reel | Φ630 | Φ1600 | Φ2500 | Φ2500 | Φ630 | Φ2000 | Φ2500 | Φ2500 | Φ2500 |
| T/U reel | Φ630 | Φ2500 | Φ3150 | Φ3150 | Φ630 | Φ2500 | Φ3150 | Φ3150 | Φ3150 |
| Capstan type | Φ630 dual-wheel | TQDV2000 | TQDV2500 | TQDV3000 | Φ630 dual-wheel | TQDV2000 | TQDV3000 | TQDV3000 | |
Machine Drawing
