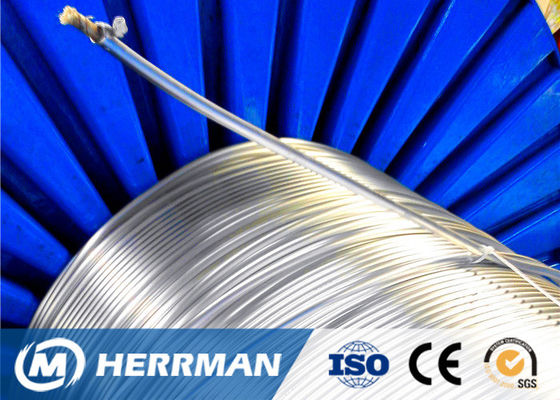

Aluminum Cladding Continuous Extrusion Machine For Seamless Al Cladding

Aluminum Cladding Continuous Extrusion Machine For Seamless Al Cladding
Aluminum Cladding Continuous Extrusion Machine For Seamless Al Cladding Aluminum Cladding Continuous Extrusion Machine For Seamless Al Cladding Aluminum Cladding Continuous Extrusion Machine For Seamless Al Cladding Aluminum Cladding Continuous Extrusion Machine For Seamless Al Cladding

Large Image :  Aluminum Cladding Continuous Extrusion Machine For Seamless Al Cladding

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, GS, SGS, TUV, ISO
Model Number: 350, 400
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: Export Packing
Delivery Time: 130 working day
Payment Terms: L/C, D/A, D/P, T/T or By Negotiation
Supply Ability: 10 Sets Per Month
Detailed Product Description
Dia. Of Extrusion Wheel: 350mm, 400mm Inlet Rod Diameter: 9.5mm
Alu Tube O.D.: 65mm - 165mm Al Tube Thickness: 2mm - 4mm
Corrugating Pitch: 10mm - 50mm Corrugating Depth: 2mm - 8mm
High Light:

steel tape armouring machine

,

wire manufacturing machine

The Aluminum Cladding Continuous Extrusion Machine For Seamless Al Cladding



Application



Aluminum Continuous Extrusion Line is mainly used to extrude the 9.5mm or 12mm Aluminum rod into the Aluminum tube of below 170mm, and then clad the cables. The aluminum tube after processed by a corrugating device serves as the cable protective cover.



The machine is used for producing Al and Al-alloy flat wires, irregular wires, aluminum bus-bar, aluminum tube, aluminum flat tube, ACS and AL clad cables Etc.



Main Technical Parameter

T. P Φ300mm Φ350mm Φ400mm Φ450mm
Dia. Of the groove wheel (mm) 300 350 400 450
Max. Width of products (mm) 40 80 180 250
Section of product (mm²) 10-240 15-800 15-2400 15-2800
Dia. of tube (mm) 5-32 6-50 20-80 50-170
Thickness of tube (mm) 0.5-5 0.5-5 1.4-5 1.4-5
Output capacity (kg/h) 180 250-500 250-800 250-1000
Size of raw material rod (mm) Φ9.5/12.5 Φ9.5/12.5 Φ12.5/15 Φ12.5/15
