PLC Control Drum Twister Machine , Power Cable Machine 130 Max Cabling OD

China PLC Control Drum Twister Machine , Power Cable Machine 130 Max Cabling OD supplier
PLC Control Drum Twister Machine , Power Cable Machine 130 Max Cabling OD supplier PLC Control Drum Twister Machine , Power Cable Machine 130 Max Cabling OD supplier PLC Control Drum Twister Machine , Power Cable Machine 130 Max Cabling OD supplier PLC Control Drum Twister Machine , Power Cable Machine 130 Max Cabling OD supplier

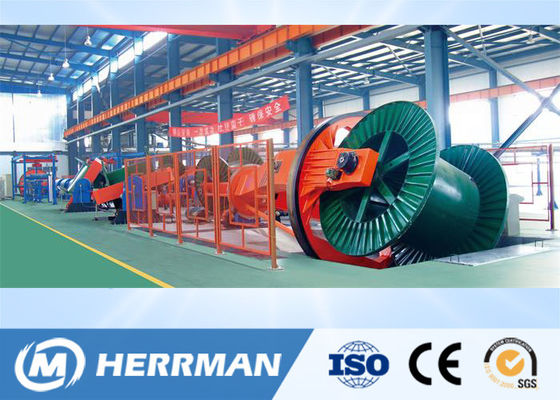

Large Image :  PLC Control Drum Twister Machine , Power Cable Machine 130 Max Cabling OD

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, SGS
Model Number: 2500, 3150, 3500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By Negotiation
Packaging Details: by ply-wooden case
Delivery Time: 90 work days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Product Name: Drum Twister Type Laying Up Machine Condition: New
Function: Cabling And Armoring Max.cabling OD( JPD-3600): Φ25~Φ130
Central P/O Reel(JPD-2500): Φ2500 Cabling Pitch: Can Be Adjusted, Step-less
Max. Cabling OD: 130 Nos. Of Steel Wire: 96pcs
Max.standard Pulling Force: 3000 Motor: Siemens
Bearing: NSK Color: Customized
Warranty: 12 Months

Drum Twister Type Laying Up Machine Drum twisting type cabling machine for power cable



Description



Drum Twister type laying up machine is used for laying-up of large section, long length power cables. The line is for laying-up of pre-spiral or non-pre-spiral cable cores and Milliken cable. The line is used for steel wires armoring of power cables, too.



Feature



1 The line is control by PLC for regulating, starting, operation and synchronization of respective electric motors. Electrical control system is advanced, easy and reliable operation.

2 Independent motor driven is used for rotating pay-off stands, taping heads and belt caterpillar respectively, lay length is precision and stable. Independent motor driven rotating pay-off stands rotate synchronously with rotating take-up, can also rotate independently. Rotating take-up stand is supported by under rollers enhanced structure rigidity, reliability and stability of rotation. The line is provided with various protection measures and auto stop function if there is any fault, easy and reliable operation.



Main Specification



Main Technical Data:
Model JPD-2500 JPD-3150 JPD-3600
Max.cabling OD Φ20~Φ120 Φ25~Φ130 Φ25~Φ130
Max.rotation speed of T/U & P/O (RPM) 50 30 30
Cabling pitch can be adjusted, step-less
Max.Linear speed (m/min) 50 40 40
Max.pulling force Standard 3000
Armoring with 96 steel wires 5000
Central P/O reel Φ2500 Φ3150 Φ3600
P/O reel Φ1600 Φ2000 Φ2500
T/U reel Φ2500 Φ3150 Φ3600
Armoring steel wire reel Φ500 Φ630 Φ630
Main motor power (KW) 45 55 75
Central P/O motor power (KW) 22 15 18.5



Main Parts



1 Φ2000 rotating pay-off stand(with lifting platform)

2 Pay-off stand of filling yearns

3 Guiding rollers stand

4 Three row cables assembly die set

5 Taping head (non-metallic tapes)

6 4T Rotating belt caterpillar (having meter counter)

7 Φ3150 rotating take-up stand with traverse(with lifting platform)

8 Electric transmission and control system

9 Pneumatic hydraulic system

10 Safe fences



Drawing for reference
