Three Core Quadruple Copper Wire Bunching Machine 0.8 - 1.7 Mm Core Dia

China Three Core Quadruple Copper Wire Bunching Machine 0.8 - 1.7 Mm Core Dia supplier
Three Core Quadruple Copper Wire Bunching Machine 0.8 - 1.7 Mm Core Dia supplier Three Core Quadruple Copper Wire Bunching Machine 0.8 - 1.7 Mm Core Dia supplier Three Core Quadruple Copper Wire Bunching Machine 0.8 - 1.7 Mm Core Dia supplier Three Core Quadruple Copper Wire Bunching Machine 0.8 - 1.7 Mm Core Dia supplier

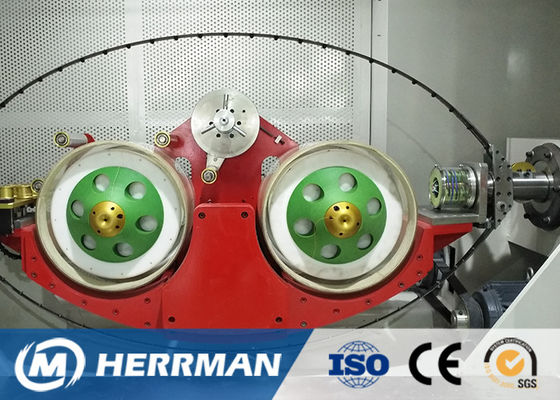

Large Image :  Three Core Quadruple Copper Wire Bunching Machine 0.8 - 1.7 Mm Core Dia

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: ISO , CQC , CE , SGS
Model Number: 500 , 630

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time: 1 month after receipt of down payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Application: Lan Cable CAT5E CAT6A CAT7 CAT8 Rotate Speed: Max. 1800 Rpm
Pay Off: Zero Tension Flyer Core Dia.: 0.8 - 1.7 Mm
Motor: Siemens Tension Range: 0.6 - 3 Kg
High Light:

double twist bunching machine

,

cable bunching machine

Three Core Quadruple Wire And Cable Twisting Machine CAT5E CAT6A CAT7 CAT8



1. Technical Parameter



Model 500 630
rotation speed max.1800rpm max.1800rpm
cores diameter 0.8-1.7mm 0.8-1.7mm
finished OD 1.6-3.4mm 1.6-3.4mm
pitch range 5-50mm 5-50mm
back twisting ratio 0-100% 0-100%
bobbin size 500 pay off,500take up 500 pay off,630take up
tension type active slide rail type active slide rail type
tension range 0.6-3kg 0.6-3kg
pitch tolerance ±2% ±2%



2. Application



Lan cable CAT5E CAT6A CAT7 CAT8



3. Features



Integrated structure , pay off , take up , and capstan within , occupies less space



Quadruple pitches finish in one time . 2 times efficiency than double twisting machine



4. Quadruple Pitch



Quadruple pitches finish in one time , 2 times efficiency than double twist machine



5. Picture for reference



Three Core Quadruple Copper Wire Bunching Machine 0.8 - 1.7 Mm Core Dia 0
