Product Details:
Payment & Shipping Terms:
|
Name: | Planetary Type Armoring Machine | Type: | Planetary Type |
---|---|---|---|
Cage Type: | 6B, 12B, 18B | Bobbin Size(mm: | 400,500,630 |
Copper Wire Dia.: | 1.2~5.0 | Al Wire Dia.: | 1.8~5.0 |
Finished Conductor: | 1.2~5.0 | Motor: | SIEMENS |
Bearing: | NSK | Color: | Color Plate Provided By Customer |
Warranty: | 1 Year | ||
High Light: | steel tape armouring machine,cable production machines |

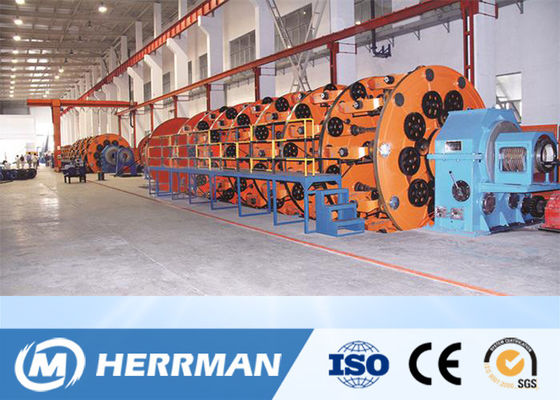

Planetary type armoring machine cradle type screening machine
Description
Planetary type armoring machine is used to manufacture AL stranded conductor(AAC,ACSR), copper stranded conductor and stranding insulated wires to cable with back twist along with steel armouring.
Main Specification
Bobbin size(mm) |
Max. rotation speed(rpm) | Wire dia.(mm) | |||||||||
Solid conductor(AAC/ACSR) | Finished conductor |
Al-clad Steel wire | Optical fiber cell |
||||||||
6B | 8B | 12B | 16B | 18B | 24B | Aluminum |
Copper |
||||
400 | 126 | 112 | 98 | 86 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | ||||
500 | 105 | 93 | 82 | 71 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | ||||
630 | 85 | 80 | 74 | 70 | 65 | 57 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | 1.2~4.5 | 1.5~5.0 |
1 Φ800 Manual type P/O
2 # type guiding stand
3 6B, 12B, 18B stranding cage
4 Wire assembly die
5 Non-metallic taping machine
6 Mechanical meter counter
7 Φ1600dual-wheel type capstan
8 F1600 Portal type TU with Traversing
9 Electric control system
10 Safety fence and others
Drawing for reference
