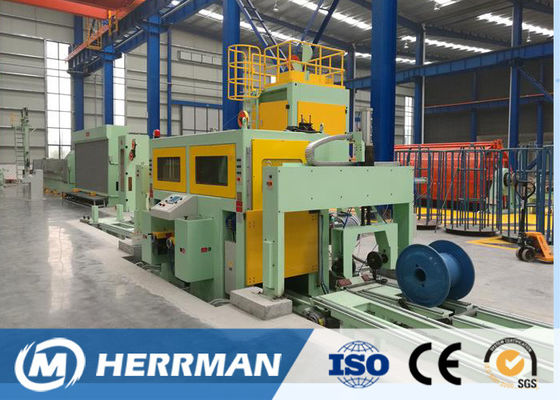

Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia

Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia
Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia

Large Image :  Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO9001:2015,CE
Model Number: 450-13
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: By Negotiation
Packaging Details: by ply-wooden case suitable for export
Delivery Time: 70 working days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Name: Dual Heads Copper Wire Drawing Machine Usage: Wire Drawing
Type: 450/9;450/11;450/13 Outlet Wire Dia.: 1.2~4.2mm
Inlet Wire Dia.: 8.0 Mm Capstan Dia(mm): Ø450
Max Speed (m/s)(450/11): 30 Inlet Dia (mm): 2xØ8
Installed Capscity(KVA)(450/9): 1200 Bearing: NSK
Motor: SIEMENS Color: Customized
HS Code: 8479400000 Warranty: 1 Year
High Light:

copper wire drawing machine

,

cable drawing machine

Dual heads copper wire drawing machine multi - head brass wire drawing machine



Description



Dual heads copper wire drawing machine is used for drawing 2 copper rods to round wire and shaped wire as well as the round wire and Shaped wire.



Feature



1 Separate motor independent transmission,non slide type wire drawing, less aluminum powder

2 Without belt,eliminating the problem of short-life of belt,and big noise

3 Due to low vibration,effectively lower the possibility of causing crackle when drawing Al alloy

4 Tension wheel between capstan to realized the non-slide drawing

5 Open type wire drawing box,easy operation and maintenance.



Main Specification


Type

Inlet Dia

(mm)

Outlet Dia

(mm)

Max Speed (m/s) Max Drawing Path Capstan Dia(mm) Installed Capscity(KVA)
450/9 2xø8 2x Ø2.1- ø4.2 22 2x 9 Ø450 1200
450/11 2x ø8 2x Ø1.7- ø5.0 30 2x 11 Ø450 1250
450/13 2x ø8 2x Ø1.2- ø5.0 30 2x 13 Ø450 1300



Drawing for reference



Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia 0
