Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable

Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable

Large Image :  Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable Get Best Price

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, SGS
Model Number: SJ50

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By Negotiation
Packaging Details: by ply-wooden case suitable for export
Delivery Time: 45 working days
Payment Terms: L/C, T/T, D/A, D/P,By Negotiation
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Fiber Drop Cable Machine Material: LSZH Or PE
Optic-fiber Dia.: Φ0.25±0.05mm FRP Reel: Fiber Drop Cable Machine
Line Speed: 200m/min (structure) Size Of FRP Reel: PN235 ,PN400,PN500
Size Of Wire Reel  : PN400~PN800 Motor: SIEMENS
Bearing: NSK Color: Customized
Certification: ISO9001:2015,CE Warranty: 1 Year
High Light:

optical fiber cable manufacturing machinery

,

optical cable production line

Fiber drop cable machine for network indoor outdoor cable use



Description



The Fiber drop cable machine is mainly used to produce 1-4 fibers FTTH cable. The material: LSZH or PE.



Main Specification



optic-fiber dia. Φ0.25±0.05mm
Size of FTTH cable 2.0*3.0mm ±0.2mm
2.0*5.0mm±0.2mm
2.5×6.9mm±0.2mm
Line speed 200m/min (structure)
Size of fiber pay-off reel Φ236×Φ25,4×108
Φ265×Φ25,4×180
Size of take-up reel PN400~PN800
Size of wire reel   PN400~PN800
Size of FRP reel PN235 ,PN400,PN500


Line configuration



1 PN800 wire pay-off

2 4 optical fiber pay-off frame

3 PN400 FRP or wire pay-off

4 SJ65×25 extruder and one head

(With feed, compound dryer device)

5 4m hot water trough and water tank

6 12m cooling water trough and refrigerating system

7 Blow dryer

8 Diameter control system

9 Φ630 single wheel capstan

10 Double reel take-up(cumulating:100m)

11 Electric control system

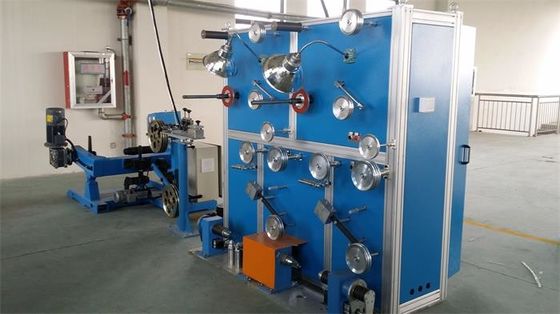

Machine Photo



Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable 0

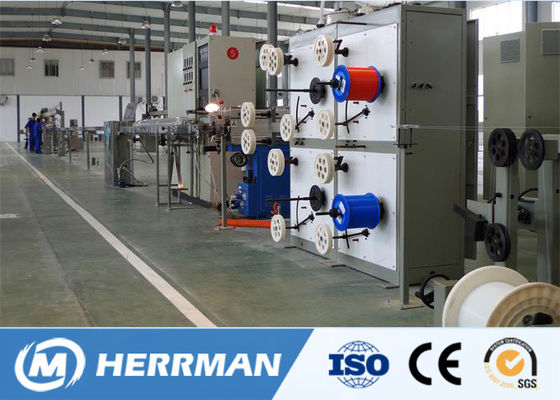

Drawing for reference



Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable 1
