Product Name: | SZ Twisting Equipment Optic Fiber Cable Stranding Machine For ADSS | SZ Stranding Head Speed (max): | 2000rpm |
---|---|---|---|
Binding Head Speed Max.: | 4000rpm | Production Speed: | 90m/m |
Structure Speed: | 100m/min | Binding Pitch: | 15-50mm |
Accuracy Of The Counter: | 0.2% | Motor: | SIEMENS |
Bearing: | NSK | Color: | Customized |
HS Code: | 847940 | Warranty: | 1 Year |
High Light: | optical fiber cable manufacturing machinery,optical cable production line |

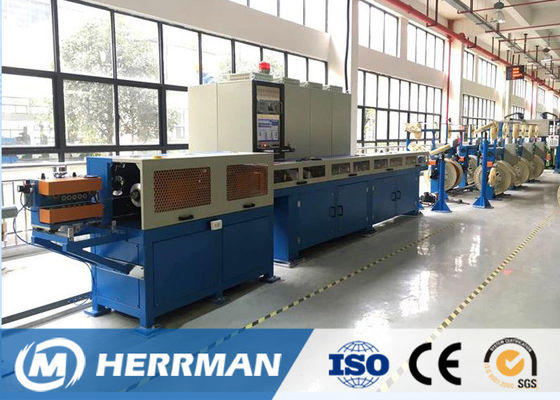

SZ twisting equipment optic fiber cable stranding machine for ADSS
Description
The SZ twisting equipment optic fiber cable stranding machine for ADSS is used for SZ stranding of loose tube elements Ф1.5-Ф6.0mm.
Feature
High production speed of 90m/m (binding pitch = 25mm, stranding pitch = 65mm);
Split type pot shape binder, lower noise.
Suitable for the loosen tube pay-off with small tension, more mild shake at high speed running.
SZ strander with 4 motors, keep the stability of stranding pitch
Main Specification
Loose tube dia./number of tube | Ф1.5-Ф6.0 mm/12 |
Structure speed | 100m/min |
Cable-making speed ( banding pitch=25mm) (stranding pitch=65) |
75m/min. |
SZ stranding angle | ±4л~±18л |
SZ stranding head speed (max) | 2000rpm |
Binding head speed max. | 4000rpm |
Binding pitch | 15-50mm |
Stranding Pitch | 50-200mm |
Fiber loose tube pay-off reel size | PN630~PN800 |
Accuracy of the counter | 0.2% |
Drawing for reference
