Heavy Duty RTP Pipe Processing Machines , Steel Wire Armouring Machine Plane Type

China Heavy Duty RTP Pipe Processing Machines , Steel Wire Armouring Machine Plane Type supplier

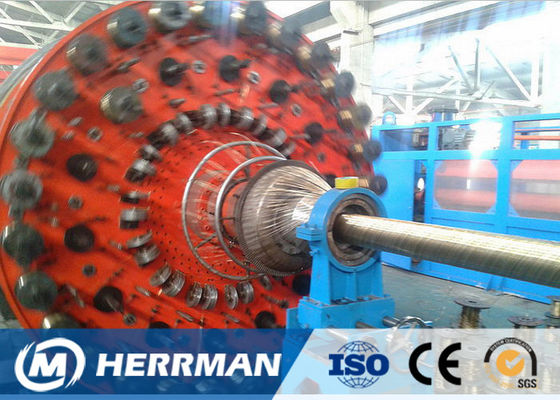

Large Image :  Heavy Duty RTP Pipe Processing Machines , Steel Wire Armouring Machine Plane Type

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE SGS ISO CQC
Model Number: 400/102+102, 400/216+216

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: Plastic Films Winding
Delivery Time: 150 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 12 Sets Per Year
Contact Now
Detailed Product Description
Final Product: RTP Pipe With Steel Wire Usage: Steel Wire Armoring
Pipe Diameter: Max. 350mm Steel Wire Diameter: 0.6-2.0mm
Linear Speed: 8m/min Rotating Speed: 10r/min

RTP Pipe Manufacturing Machine Plane Type Steel Wire Armoring Machine



1. Application



This machine is mainly used for armoring high-pressure hose. Final hose is used for conveying of offshore oil, natural gas and fresh water in the ocean. And conveying oil and chemical material on the land.



2. Main Features



- Steel wire pay-off tension is controlled by mechanical friction, and can be adjusted.

- Stranding cage adopts plane type structure. It has front and back support, with good rigidity.

- Each part is driven by independent motor. It adopts SIEMENS PLC to unified control and managed the working condition of each motor. The rotating speed and stranding pitch can be changed by stepless and shown on the touch screen.



3. Main Technical Specification



Specification 400/216+216 400/102+102
Steel wire diameter 0.6-2.0mm 0.6-2.0mm
Max. armoring O.D. 325mm 250mm
Max. rotating speed 10r/mim 10r/mim
Haul-off device 6-claws hual-off device 3-claws hual-off device
