AC / DC Driven Control Wire Drawing Equipment , Multi Heads Wire Manufacturing Machine

I'm Online Chat Now
China Anhui Herrman Machinery Technology Co.,ltd certification
We visited HERRMAN and were positively impressed on the good workmanship and wish HERRMAN to continue along the lines of doing business so far.

—— Mr. Vipul from Sterlite

We bought many machines from Herrman Group and We understand that a decent quality has been reached and hope continuous efforts to make good machines.

—— Mr. Rajurkar from Poly Cab

It's really enjoyable experience for coopetaion with Herrman Team. They are making good quality machines as well as with professional commercial issue

—— Mr. Kotadia from Nexans QICC

Herrman is a company with high reputation. They have a very good after-sale service team. You can always get timely and positive feedback from them.

—— Mr. Mahesh from Havells

Herrman proved to be very helpful, skilled, resourceful and flexible in finding solutions.We plan to do another extension in cooperation this year.

—— Mr.Frank Maczak from TK Dixi

Our equipment people and production people are quite happy with the workmanship of the machine supplied by Herrman. Please maintain that level. Thanks

—— Mr.Suren Shah from WTEC

AC / DC Driven Control Wire Drawing Equipment , Multi Heads Wire Manufacturing Machine

AC / DC Driven Control Wire Drawing Equipment , Multi Heads Wire Manufacturing Machine
AC / DC Driven Control Wire Drawing Equipment , Multi Heads Wire Manufacturing Machine AC / DC Driven Control Wire Drawing Equipment , Multi Heads Wire Manufacturing Machine

Large Image :  AC / DC Driven Control Wire Drawing Equipment , Multi Heads Wire Manufacturing Machine Get Best Price

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE , ISO , CQC ,SGS
Model Number: 100 , 120

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: To be packed into containers,suitable for long distance sea transportation and well protected aginst change of climate,moisture and shock.
Delivery Time: 3 months after receipt of down payment
Payment Terms: L/C , D / A , D / P , T / T
Supply Ability: 50 Sets per year
Detailed Product Description
Color: Customerized Motor: Siemens Or Customerized
Bearing: China Famous Brand Or NSK Max. Speed: 1800m/min
Driven Control: AC / DC Material: Al, Al Alloy, Cu
High Light:

copper wire drawing machine

,

cable drawing machine

Multi Heads Wire Drawing Machine With High Speed And Annealing Machine



1. Main Technical Specification:



Machine model Inlet diameter(mm) Outlet range(mm) Number of wires Number of dies Annealing contact pulley(mm) Annealing current(A) Driven control Max speed(m/min) Bobbin(mm)
HM-MD100 1.60-2.00 0.15-0.50 8 22/25 140 2000 AC/DC 1800 630
HM-MD120 2.20-2.60 0.20-0.90 8 22/25 200 4500 AC/DC 1800 630
HM-MD100 1.60-2.00 0.15-0.40 14 17/22 200 4500 AC/DC 1800 630
HM-MD100 1.60-2.00 0.15-0.40 16 22/25 140 2500 AC/DC 1800 630
HM-MD100 1.60-2.00 0.15-0.40 24 22/25 200 3000 AC/DC 1800 630



2. Machine application



The machine is used to draw 12 soft copper wires at same time. It is a proper equipment for producing high quality wires and cables.



3. Annealing device



Anneal type: Continuous resistance (two-sections or three sections) structure.



Transmission: Belt.



Anneal max current: 4000A.



Anneal max voltage: 50V.



Anneal max diameter: Φ0.50mm.



Anneal min diameter: Φ0.25mm.



Anneal max speed: 25m/s.



Anneal capstan diameter: Ф500mm.



Anneal capstan material: Cold rolling nickel tube.



Compressed air quantity: Approximately 300L/min, and pressure is above 0.6Mpa.



Cooling water of heat exchanger quantity: Approximately 250L/min, and temperature is no higher than 25℃.



Cooling water pump model: 65ZX30-15.



Plate heat exchanger: 10 ㎡.



Bearing uses NSK bearing.



Sealing components are made in Taiwan.



It has break detector.



Anneal copper capstans bearing set use Flange positioning, to make sure copper capstans are in the same plane, good repositioning and easy maintenance. (Prepare with common manual positioning.)



The power consumption of three phases AC anneal device is 10% less than DC anneal device.



It uses AC primary side voltage regulation to increase silicon controlled lifetime.



It uses recycle water-cooling for up anneal capstan to reduce the temperature of copper capstan, bearing and nickel strap, and to increase their lifetimes.



Carbon brush capstan uses air-cooling.



4. Picture for reference

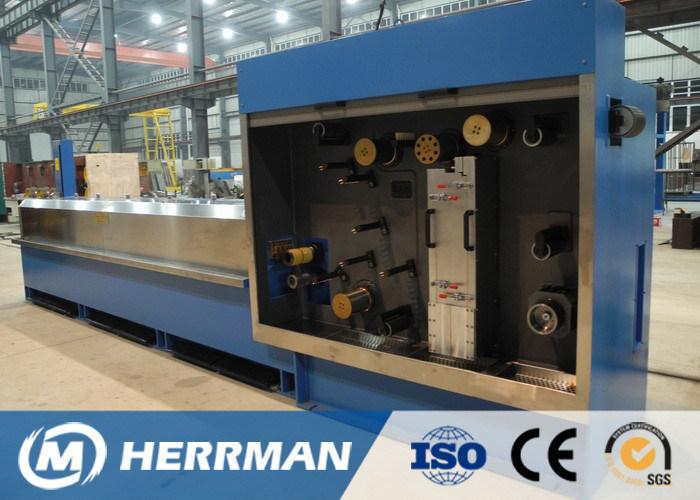

AC / DC Driven Control Wire Drawing Equipment , Multi Heads Wire Manufacturing Machine 0
