Automatic Wire Drawing Machine Separate Motor Driven 450mm Capstan Diameter

China Automatic Wire Drawing Machine Separate Motor Driven 450mm Capstan Diameter supplier
Automatic Wire Drawing Machine Separate Motor Driven 450mm Capstan Diameter supplier Automatic Wire Drawing Machine Separate Motor Driven 450mm Capstan Diameter supplier Automatic Wire Drawing Machine Separate Motor Driven 450mm Capstan Diameter supplier

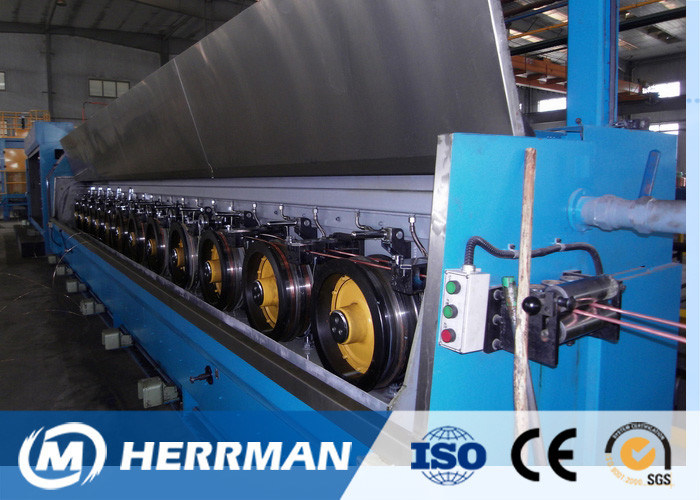

Large Image :  Automatic Wire Drawing Machine Separate Motor Driven 450mm Capstan Diameter

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE,CQC,SGS,ISO
Model Number: 450 / 9 , 450 / 11 , 450 / 13

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: To be packed into containers,suitable for long distance sea transportation and well protected aginst change of climate,moisture and shock.
Delivery Time: 3 months after receipt of down payment
Payment Terms: L/C , D / A , D / P , T / T
Supply Ability: 50 Sets per year
Contact Now
Detailed Product Description
Color: Decided By User Motor: Siemens
Bearing: NSK Or China Famous Brand Or Customerized Inlet Diameter: 8mm (Cu) 9.5mm Al)
Capstan Diameter: 450mm Application: Copper Or Aluminum

2 Wire Copper Wire Drawing Machine Separate Motor Driven Type With Annealer

1. Usage

This line is used to drawing the Aluminum Rod of Φ9.0mm or Φ8.0mm Copper Rod to size of Φ1.8~Φ5.0mm Aluminum Wire or Φ1.2~Φ5.0mm Copper Wire.

2.Main Technical specification:

Two wire Aluminum Rod Breakdown Machine


Type Inlet dia.(mm) Output dia.(mm) Max speed(m/s) Max drawing pass Capstan dia.(mm) Installed capacity(KVA)
450/9 2x9.5 2x2.5-4.7 22 2x9 450 580
450/11 2x9.5 2x2.0-5.0 30 2x11 450 620
450/13 2x9.5 2x1.8-5.0 30 2x13 450 680


Two wire Copper Rod Breakdown Machine


Type Inlet dia.(mm) Output dia.(mm) Max speed(m/s) Max drawing pass Capstan dia.(mm) Installed capacity(KVA)
450/9 2x8 2x2.1-4.2 22 2x9 450 1200
450/11 2x8 2x1.7-5.0 30 2x11 450 1250
450/13 2x8 2x1.2-5.0 30 2x13 450 1300


3. Electric control system

Power supply: 3 phase, 5 wires, 380V, 50Hz

AC motor frequency converter uses Japan YASKAWA brand.

Machine uses Siemens S7-1200 Smart---PLC control to operate

Siemens brand 10 inch colorful touch-screen.

Itermediate relay,AC contactor and air switch under 63A use Siemens brand.

4. Machine data

Operation Mannual (including:wearing parts drawing and size,electrical principledrawing,wiring drawing)

PLC Program

Touch screen program



5. Picture for reference


Automatic Wire Drawing Machine Separate Motor Driven 450mm Capstan Diameter
