Product Name: | Horizontal Type Optical Fiber Coloring And Rewinding Machine | Line Speed: | 2800m/min |
---|---|---|---|
Traversing Pitch: | 0.1~1.0mm±0.01mm | Extra-attenuation: | ≤0.02dB/Km(SM , 1500Nm) |
Horizontal Type Optical Fiber Coloring And Rewinding Machine: | 0.3N~1.2N±0.05N | Optical Fiber Reel Size: | 25km/50km Reel Weight 10kg |
High Light: | optical fiber cable manufacturing machinery,optical cable production line |

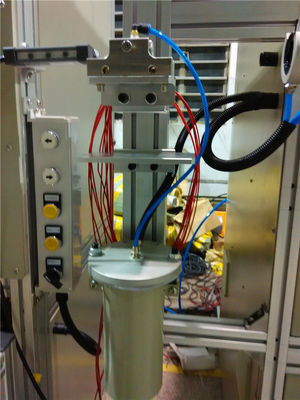

Horizontal Type Optical Fiber Coloring and Rewinding Machine, 3 Fibres colored together
Application:
Mainly applied for coloring the surface of optic fibers,convenient to identity the multi-fibers within the loose tube.Also can be used to rewind fibers.
Consist of:
There is a auto-centralizing unit for the fiber pay-off.The traversing unit with photoelectric sensor assures even take-up without overlaps. Temperature, Pressure, UV power supply are auto-tracking and are shown and adjustable on the sensor display. The Nitrogen supply and ventilator power are manual controlable.The machine is controlled by Siemens PLC system with sensor display.
Main Technical Data
Type | HM05 | HM06 | HM07 |
Coloring speed | 2000m/min (Nitrogen gas ) | 2500m/min (Nitrogen gas ) | 3000m/min (Nitrogen gas ) |
Rewinding speed | ≤1800m/min | ≤2200m/min | ≤2600m/min |
Pay-off and take-up tension | 0.3N~1.2N±0.05N | 0.3N~1.2N±0.05N | 0.4N~1.2N±0.05N |
Traversing pitch | 0.1~1.0mm±0.01mm | 0.1~1.0mm±0.01mm | 0~1.0mm±0.01mm |
Extra-attenuation after coloring | ≤0.02dB/Km(SM , 1500Nm) | ≤0.02dB/Km(SM , 1500Nm) | ≤0.02dB/Km(SM , 1500Nm) |
Optical fiber reel size (max.) | 25km/50km reel weight 10kg | 25km/50km reel weight 10kg | 25km/50km reel weight 10kg |
