Cable Stranding Pcd Diamond Carbide Wire Drawing Dies

Cable Stranding Pcd Diamond Carbide Wire Drawing Dies
Cable Stranding Pcd Diamond Carbide Wire Drawing Dies Cable Stranding Pcd Diamond Carbide Wire Drawing Dies Cable Stranding Pcd Diamond Carbide Wire Drawing Dies Cable Stranding Pcd Diamond Carbide Wire Drawing Dies

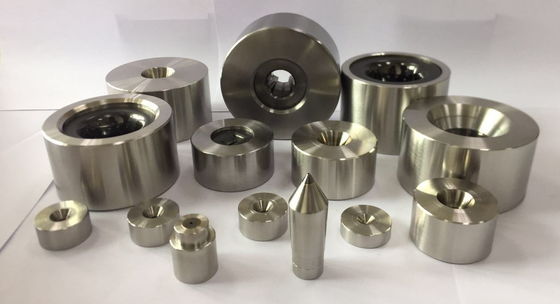

Large Image :  Cable Stranding Pcd Diamond Carbide Wire Drawing Dies

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO, SGS
Model Number: 20-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: export packing
Delivery Time: 14 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 1200pcs per one month
Detailed Product Description
Product Name: Nano Diamond Dies Surface Treatment: Nano Diamond Coating
Application: Cable Stranding Useful Life: 500~1500km
High Light:

Cable Stranding pcd wire drawing dies

,

Cable Stranding diamond wire drawing dies

,

1500km carbide wire drawing dies

Energy Saving Wire Cable Accessories Conductor Nano Diamond Coating Dies Non Scrap



OD*Height (mm) Hole range (mm)-d Reduction angle (°) -α Reduction Zone Height(mm)-L1 Bearing Length(mm)-L β(°)
20*17 3-6 26-30 5-6 1-2 60-80
22*18 6-8 26-30 5-6 1.5-2.5 60-80
25*18 8-11 26-30 5-6 1.5-2.5 60-80
30*18 11-14 26-30 6-8 2.0-3.0 60-80
35*22 14-16 26-30 6-8 2.0-3.0 60-80
38*22 16-19 26-30 6-8 2.5-3.5 60-80
40*25 19-21 26-30 8-10 2.5-3.5 60-80
45*24 21-24 26-30 8-10 3.0-4.0 60-80
50*28 24-28 26-30 8-10 3.0-4.0 60-80
60*30 28-37 26-30 10-12 3.5-4.5 60-80
70*35 37-42 26-30 10-12 4.0-5.0 60-80
75*35 42-50 26-30 12-14 5.0-6.0 60-80
85*40 50-60 26-30 12-14 6.0-7.0 60-80





Contrast of three types compacting dies(Size 29.00mm)
Item TC PCD NDCD
Save power Waste much Waste a little Most Save
Grain of diamond 5-40μ 0.05μ
Output 50KM 1000KM 500-1500KM
Life Short Long Longer
Surface Good Not good Excellent
Repair Many times Many times No need
Uniformity of cable Not good Good 100% Excellent
Diameter changed Big A little Not changed
Al Cu Scale Much Too Much NO
Electrical properties Not good Common Best
Withstand Voltage of cable Common Common Best
Life of cable Common Common Highest
Resistance Not stable Not stable Very stable
Production efficiency Low High High
Usage rates Less 10% 30% 60%
Compacting Ratio CU : 0.95-0.97, AL : 0.90-0.90
Other cost Nano Diamond Coating Wire Cable Accessories Cable Stranding And Compacting Die not only save material cost,but also save human cost,manage cost,cost of power.Help you to have a more clear environment.
Above info only for your referance
