Product Details:
Payment & Shipping Terms:
|
| Usage: | Stranding | Structure: | Tubular Type |
|---|---|---|---|
| Application: | Al , Steel , Copper Wires | Motor: | Siemens |
| Bearing: | NSK | Take Up: | Portal Type , Pintle Type |
| High Light: | 12B Cable Stranding Machine,12B wire cable strander,Tubular type wire cable strander |
||
High efficiency tubular stranding copper wire cable making machine
1. Application
It is used for stranding the steel wires , aluminum wires and copper wires , as well as stranding of control cables
The stranding tubular cage with 2 section integral making processing has small turning radial , both ends are supported by bearing , ensuring steady running and long service time.
2. Technical Specification
| Bobbin size(mm) | Max. rotation speed(rpm) | Wire dia.(mm) | |||||
| 6B | 12B | 18B | 24B | Aluminum | Copper | Steel | |
| 200 | 1200 | 900 | 1.0-2.5 | 0.2-1.5 | 0.2-0.8 | ||
| 315 | 900 | 800 | 1.0-2.5 | 0.5-1.8 | 0.3-1.0 | ||
| 400 | 900 | 800 | 550 | 1.0-2.5 | 1.4-4.0 | 0.6-3.0 | |
| 500 | 800 | 600 | 450 | 350 | 1.3-5.0 | 1.8-5.0 | 1.3-3.5 |
| 560 | 700 | 500 | 400 | 300 | 1.3-5.0 | 1.8-5.0 | 1.3-3.5 |
| 630 | 700 | 500 | 330 | 260 | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 |
| 710 | 400 | 300 | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 | ||
| 760 | 350 | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 |
|||

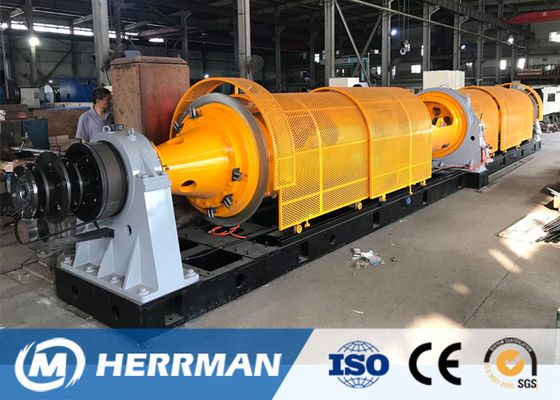

3. Picture for reference
