Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Power Souce: | AC Motor |
|---|---|---|---|
| Min. Lifting Height: | 80mm | Fork Length: | 950/1070mm |
| Fork Width: | 100mm | Warranty: | 1 Year |
| Core Components: | Motor, Pump, Engine | Name: | Electric Forklift Truck |
| Capacity: | 1500kg | Max. Lifting Height: | 2500-5600mm |
| Power: | Electric | Operate Type: | Seated |
| Battery: | 320/400Ah | After-sales Service P: | Free Spare Parts |
| High Light: | 1500kg 3 wheel electric forklift,1500kg electric counterbalance forklift,1.5T electric counterbalance forklift |
||

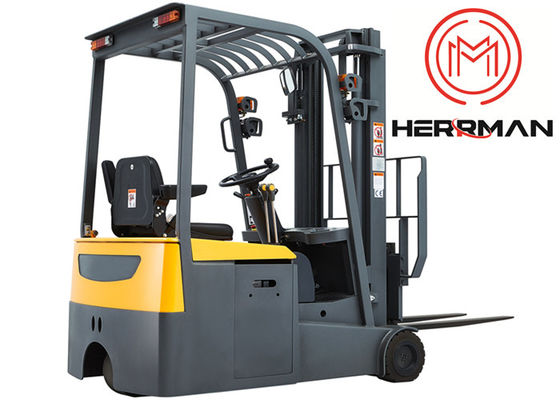

New Design 3 Wheel 1.5ton/1500kg Electric Power Fork Lift Electric Forklift With AC Motor
SIZE INFORMATION
| Model | CPD15S-E | |
| Capacity/rated load | Q(kg) | 1500 |
| Load centre distance | c(mm) | 500 |
| Lift height | h3(mm) | 2500~5600 |
| Load distance,centre of drive axle to fork | x(mm) | 170 |
| Wheelbase | Y(mm) | 1348 |
| Service weight(with battery) | kg | 2500 |
| Axle loading,laden front/rear | kg | 3280/710 |
| Axle loading,unladen front/rear | kg | 975/1525 |
| Height,mast lowered | h1(mm) | 1980(3M) |
| Free lift | h2(mm) | option |
| Height,mast extended | h4(mm) | 3500~6600 |
| Overall width | b1(mm) | 1055 |
| Fork dimensions | s/e/l(mm) | 35x100x950(1070) |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 3050 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 3150 |
| Turning radius | Wa(mm) | 1550 |
| Travel speed,laden/unladen | Km/h | 6.8/7 |
| Lift speed,laden/unladen | mm/s | 100/150 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/320(400) |
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
