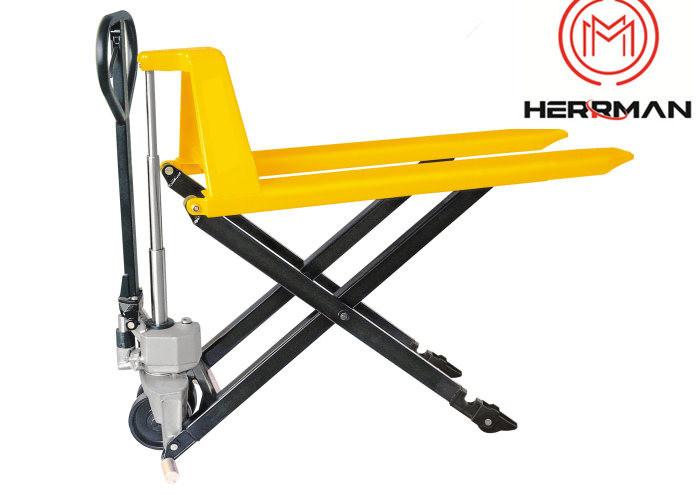

Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack

Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack
Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack

Large Image :  Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack

Product Details:
Place of Origin: CHINA
Brand Name: HERRMAN
Certification: ISO,CE
Model Number: JF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: In wooden case
Delivery Time: 21 Working days
Payment Terms: L/C, D/A, D/P, T/T,O/A
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Product Name: High Lift Truck Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair
Min. Lifting Height: 3.3inch Fork Width: 21/27inch
Weight: 230-254lbs Fork Length: 45.3inch
Core Components: Motor, Pump, Engine Warranty: 1 Year
High Light:

1000kg hand pallet scissor

,

1000kg scissor lift pallet jack

,

85mm scissor hand pallet truck

hand pallet jack forklift 2200lbs capacity high lift hydraulic manual truck

Hand pallet truck  JF features:



• ldeal design with numerous possibilities makes this unit very suitable as a pallet truck/scissor lift table.

• Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.

• support legs come into operation automatically.

• It prevents the unit from moving when the forks are raised to keep the safety of the operator.

• Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.

• 210 degree turning radius.

• 2 lateral stabilizers when raised ensure good stability.

• Option: Stainless Steel.




Hand pallet truck JF size information:

Model   JF
Capacity Q(kg) 1000
Lowered fork height h13(mm) 85
Steering wheel mm Φ180X50
Fork wheel mm Φ74X50
Fork length l(mm) 1150
Width overall forks b5(mm) 520/550/685
Aisle width for pallets 1000×1200 crossways Ast(mm) 1715
Aisle width for pallets 800×1200 lengthways Ast(mm) 1765
Turning radius Wa(mm) 1360
Service weight kg 104-115
Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack 0
PRODUCTION SCENE
Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack 1
PACKING&SHOPING
Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack 2
FAQ


Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
