Product Details:
Payment & Shipping Terms:
|

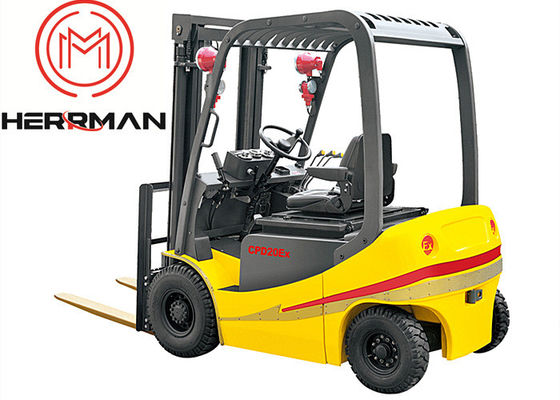

| Model Number: | CPD15/20/30/35Ex | Name: | Explosion-Proof Electric Forklift Truck - Xilin CPD-Ex |
|---|---|---|---|
| Fork Length: | 1070mm | Turning Radius: | 1980-2430mm |
| Overall Width: | 1140mm-1220mm | Max. Lifting Height: | 3000-5600mm |
| Power Souce: | AC Motor | Rated Loading Capacity: | 3 Ton/2 Ton/1.5 Ton/2.5 Ton |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Rep | Type Of Drive Control: | AC |
| High Light: | 3.5t electric warehouse forklift,5.6m electric warehouse forklift,3.5t sit down electric forklift |
||
Advantages:
Our Ex AC type electric forklift is approved with Explosion-proof mark: Ex d mb s ⅡB T4 Gb/Ex tD A21 IP65 T130℃ explosion-proof equipment for Category 2G, applicable to Zone I and Zone II which may have explosive gas environment. Offer high safety functions according to international standards.
SIZE INFORMATION
| Model | CPD15Ex | CPD20Ex | CPD30Ex | CPD35Ex | |
| Explosion-proof | Exd mbsⅡBT4 Gb/Ex tD A21 IP65 T130℃ | ||||
| Operation type | seated | seated | seated | seated | |
| Capacity/rated load | Q(kg) | 1500 | 2000 | 3000 | 3500 |
| Load centre distance | c(mm) | 500 | 500 | 500 | 500 |
| Lift height | h3(mm) | 3000~5600 | 3000~5600 | 3000~5600 | 3000~5600 |
| Load distance, centre of drive axle to fork | x(mm) | 428 | 428 | 498 | 498 |
| Wheelbase | y(mm) | 1460 | 1460 | 1850 | 1850 |
| Service weight(with battery) | kg | 3520 | 3680 | 5120 | 5300 |
| Axle loading, laden front/rear | kg | 4210/810 | 4820/860 | 7260/860 | 8010/790 |
| Axle loading, unladen front/rear | kg | 1660/1860 | 1760/1920 | 2510/2610 | 2620/2680 |
| Tyre size, front | 6.50-10-10PR Ex | 6.50-10-10PR Ex | 28×9-15 Ex | 28×9-15 Ex | |
| Tyre size, rear | pcs | 5.00-8-8PR Ex | 5.00-8-8PR Ex | 6.50-10-8PR Ex | 6.50-10-8PR Ex |
| Wheels, number front rear(x=driven wheels) | b10(mm) | 2x/2 | 2x/2 | 2x/2 | 2x/2 |
| Tread, front | b11(mm) | 970 | 970 | 1000 | 1000 |
| Tread, rear | 920 | 920 | 970 | 970 | |
| Tilt of mast/fork carriage forward/backward | . | 3/6 | 3/6 | 4/6 | 4/6 |
| Height, mast lowered | h1(mm) | 2090~2450 | 2090~2450 | 2040~2660 | 2040~2660 |
| Height, mast extended | h4(mm) | 4067~6667 | 4067~6667 | 4280~7280 | 4280~7280 |
| Height of overhead guard(cabin) | h6(mm) | 1992 | 1992 | 2140 | 2140 |
| Seat height | h7(mm) | 980 | 980 | 1100 | 1100 |
| Coupling height | h10(mm) | 480 | 480 | 590 | 590 |
| Overall length | l1(mm) | 3300 | 3300 | 3755 | 3755 |
| Length to face of forks | l2(mm) | 2160 | 2160 | 2640 | 2640 |
| Overall width | b1(mm) | 1140 | 1140 | 1220 | 1220 |
| Fork dimensions | s/e/l(mm) | 45/120/1070 | 50/120/1070 | 55/130/1070 | 55/130/1070 |
| Fork carriage type A,B | A | A | A | A | |
| Fork carriage width | b3(mm) | 980 | 980 | 1200 | 1200 |
| Ground clearance, laden, below mast | m1(mm) | 100 | 100 | 110 | 110 |
| Ground clearance, centre of wheelbase | m2(mm) | 130 | 130 | 140 | 140 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 3600 | 3600 | 4080 | 4080 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 3400 | 3400 | 3880 | 3880 |
| Turning radius | Wa(mm) | 1980 | 1980 | 2430 | 2430 |
| Travel speed, laden/unladen | km/h | 11.5/12 | 11/11.5 | 11.5/12 | 11/12 |
| Lift speed, laden/unladen | mm/s | 280/300 | 260/300 | 220/240 | 200/240 |
| Lowering speed, laden/unladen | mm/s | <600 | <600 | <600 | <600 |
| Max. gradeability, laden/unladen | % | 10/15 | 10/15 | 10/15 | 10/15 |
| Service brake | mechanical/hydraulic | ||||
| Battery voltage, nominal capacity K6 | V/Ah | 48/480 | 48/540 | 80/480 | 80/540 |
| Battery weight | kg | 820~860 | 920~960 | 1320~1380 | 1480~1540 |
| Type of drive control | AC | AC | AC | AC | |
| Sound level at the driver’s ear acc.to DIN 12053 | dB(A) | 68 | 68 | 68 | 68 |
PRODUCT DESCRIPTION
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
