12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

Name: 12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
Brand: HERRMAN
SKU: CQD16
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (144 reviews)

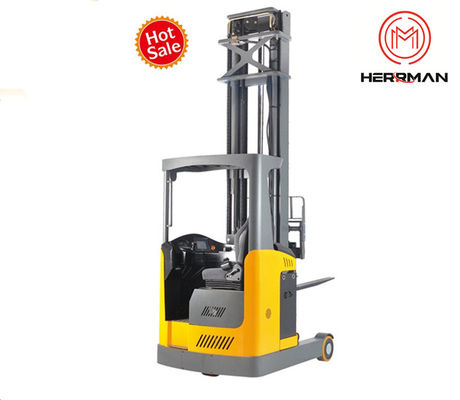

Large Image : 12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

Product Details:

Place of Origin:	CHINA
Brand Name:	HERRMAN
Certification:	ISO,CQC,IQNET,CNAS
Model Number:	CQD16

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiation
Packaging Details:	1pc / pallet or 1pc / wooden box
Delivery Time:	21-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Supply Ability:	200 Unit/Units per Month

Contact Now

Detailed Product Description

Rated Loading Capacity:	1600kg	Fork Length:	1070mm
Warranty:	2 Years For Machinery Warranty\|1 Year For Core(Core Components Include Motor,Pump,Engine) Components	Max. Lifting Height:	7400mm 8000mm 8600mm 9500mm
Fork Width:	100mm	Steering Type:	Electrikc Power Steering EPS
Core Components:	Motor, Pump, Engine	Color:	Customer Demanded
Type:	Electric Reach Forklift	Model Number:	CQD16
High Light:	1.6T Electric Lift Truck , 9.5m Electric Lift Truck , 1.6T outdoor electric forklift

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck 0

PRODUCT DESCRIPTION

Herrman Forklifts 1600kgs 1.6ton Max Lift Height 9.5m with AC motor Electric Reach Truck Drive Wheel

Advantages:

● With powerful AC drive motor, increase the production efficiency.

● Offers three different driving speed options ( Low/medium/high).

● Standard With ELECTRIC POWER STEERING system (EPS ) , steering is very light.

● Hydraulic system with proportional lifting, precisely control different speed .

● Steering wheel can be turn at 360degrees and or 180 degrees, two type steering functions can be freely switched as demand.

● Two lifting cylinder on two sides of mast and provide vide view in the front.

● Have multifunction instrument: show steering wheel direction. BDI battery status, faulty code, different driven speed.
Option:

● Keypad ignition with PIN CODE, easy to access the management system of truck.

● High solution camera, easy to operate for high fork position.

● Height position offers easier pallet handling at high height position.

● Side way moving battery.

● Provide different option of overhead guard width, have smaller overhead guard can operate in driven- in racking warehouse.

SIZE INFORMATION

			Model
			CQD16

			Capacity / rated load
			(kg/lbs)
			1600/3528

			Max. lift height
			h3(mm/inch)
			7400/8000/8600/9500(291/315/339/374)

			Load centre distance
			c(mm/inch)
			600/23.6

			Height, mast lowered
			h1(mm/inch)
			3890/153.1

			Free lift
			h2(mm/inch)
			3200/125.9

			Height, mast extended
			h4(mm/inch)
			10500/413.4

			Height of overhead guard (cabin)
			h6(mm/inch)
			2200/86.6

			Seat height / stand height
			h7(mm/inch)
			1050/41.3

			Height of crura
			h8(mm/inch)
			310/12.2

			Overall length
			l1(mm/inch)
			2400/94.5

			Length to face of forks
			l2(mm/inch)
			1320/52

			Overall width
			b1/b2(mm/inch)
			1260/50

			Fork dimensions
			s/e/l(mm/inch)
			35*100*1070(1.4*3.9*42.1)

			Reach distance
			l4(mm/inch)
			560/22.1

			Aisle width for pallets 1000x1200 crossways
			Ast(mm/inch)
			2750/108.3

			Aisle width for pallets 800x1200 lengthways
			Ast(mm/inch)
			2810/110.6

			Turning radius
			Wa(mm/inch)
			1640/64.6

			Travel speed, laden / unladen
			Km/h
			12

			Lift speed, laden / unladen
			m/s
			0.35/0.4

			Service weight (with battery)
			(kg/lbs)
			3600/7938

PACKING&SHOPING

PRODUCTION SCENE
FAQQ1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
