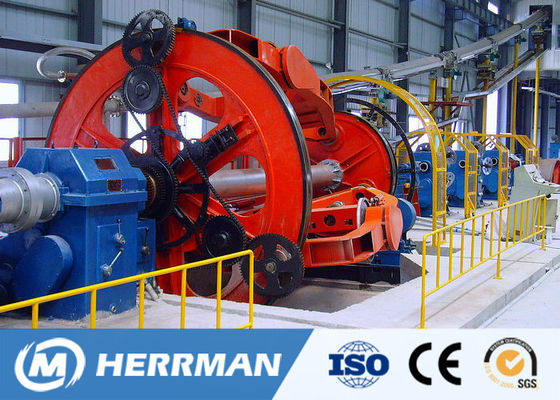

Planetary Power Cable Lay Up Machine for 10~35mm Single Wire Diameter

Planetary Power Cable Lay Up Machine for 10~35mm Single Wire Diameter
Planetary Power Cable Lay Up Machine for 10~35mm Single Wire Diameter

Large Image :  Planetary Power Cable Lay Up Machine for 10~35mm Single Wire Diameter

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: SGS, CQC, CE, ISO
Model Number: 630, 1000, 1250, 1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Line
Price: By Negotiation
Packaging Details: Plastic Film
Delivery Time: 120 days
Payment Terms: D/P, T/T, L/C, D/A, OA
Supply Ability: 20 Sets Per Year
Detailed Product Description
Usage: Laying Up Cable Final Product: Power Cable
Rotating Speed: 40~60r/min Bobbin Size: 630, 1000, 1250, 1600mm
Single Wire Diameter: 10~35mm Motor Power: 30, 37, 45, 55KW
High Light:

drum twister machine

,

core laying machine

Planetary Power Cable Lay Up Machine for 10~35mm Single Wire Diameter



1. Application



Planetary Power Cable Lay Up Machine for 10~35mm Single Wire Diameter can be used to manufacture large size plastic cable or PEX cable, section of cable can be round or setor.



2. Main Features



- The machine is provided with back-twist, electric pre-twist, bobbin is clamped and released by electromotion.

- The machine adopt SIEMENS PLC to command and coordinate electric work. The electric control system is advance in technology, easy in operation, and reliable in running.



3. Type



630/1+6, 1000/1+6, 1000/1+3, 1000/1+1+3,

1250/1+3, 1250/1+1+3, 1250/1+4, 1250/1+6

1600/1+3, 1600/1+1+3



4. Main Technical Specification

Type JC-1600/1+1+3 JC-1250/1+1+3 JC-1000/1+6 JC-1250/1+4
Diameter of single wire(mm) 10~35 10~25 10~20 10~25
Max diameter for cabling(mm) 100 75 63 75
Max Speed(rmp) 40 50 60 50
Stranding pitch(mm) 415~7100 151~2652 110~1910 151~2652
Taping speed(rmp) 160~357 125~278 125~278 125~278
Taping Pitch(mm) 13.7~221 12.4~203 12.4~203 12.4~203
Line speed(m/min) 4.9~35.5 3.5~25.4 3.5~25.4 3.5~25.4
Main motor(kw) 55 37 30 45
