| Color: | Customerized | Number Of Head: | 1 |
|---|---|---|---|
| Number Of Spindles: | 16 , 24 , 32 , 48 | Motor: | Siemens |
| Horngear Diameter: | 110mm | Horngear Speed: | 320rpm |
| High Light: | cable braiding machine,fiber optic cable equipment |
||
Braiding Machine Wire Cable Machine High Speed Braider For Wire And Cable
1. Main Features:
To extend the service life,imported materials are used for all the key components in these machines.They are equipped with independent take-up and pay-off motor up to 800mm reel. With the patented anti oil throwing construction,braided products are guaranteed to be clean without oil pollution. Electrical components of the control system are selected from international famous brands which make the system more stable and reliable.
2. Technical Specification
| Model | GB-16B01D | GB-24B01D | GB-32B01D | GB-48B01D |
| Number of heads | 1 | 1 | 1 | 1 |
| Number of spindles | 16 | 24 | 32 | 48 |
| Horngear diameter | 110mm | 110mm | 110mm | 110mm |
| Horngear speed | 320rpm | 320rpm | 320rpm | 320rpm |
| Motor power | 0.55kw 380v | 0.75kw 380v | 1.1kw 380v | 1.5kw 380v |
| Dimensions(mm) | 1000*1500*1950 | 1100*1600*1950 | 1200*1800*1950 | 1500*2000*1950 |
| Braiding OD | ≤12mm | ≤20mm | ≤25mm | ≤30mm |

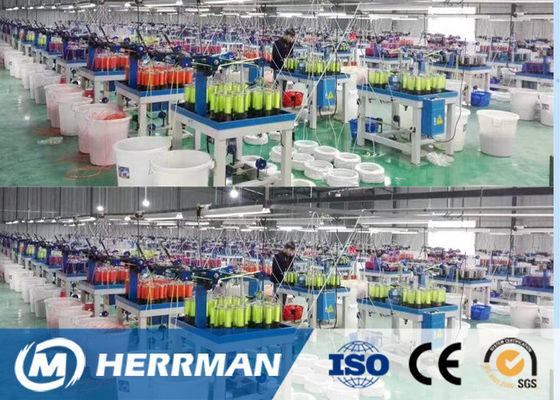

3. Picture for reference
